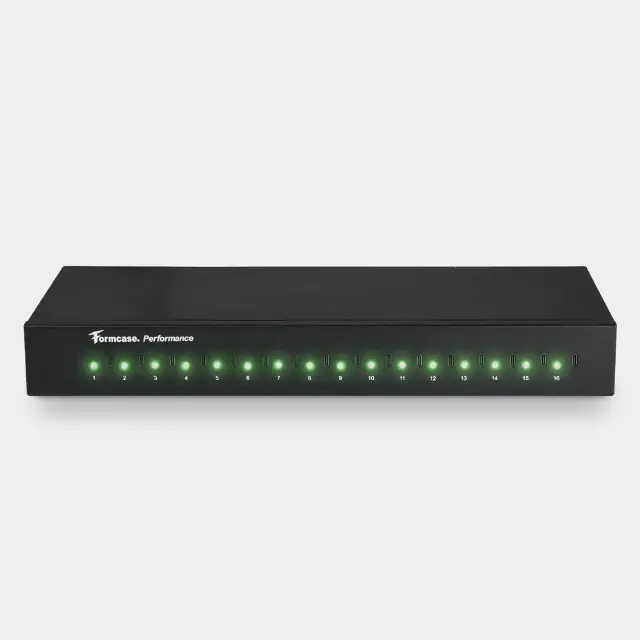

TransformerHub H16PD Performance
USB-C PD hub for 16 devices at up to 30 W per port.
Everything inside the TransformerHub H16PD Performance.
USB-C PD hub for 16 devices at up to 30 W per port.
Up to
tablets at once
Up to
USB-C Power Delivery per port
LED status: red charging, green full
Supports all USB PD voltages
Automatic charge control

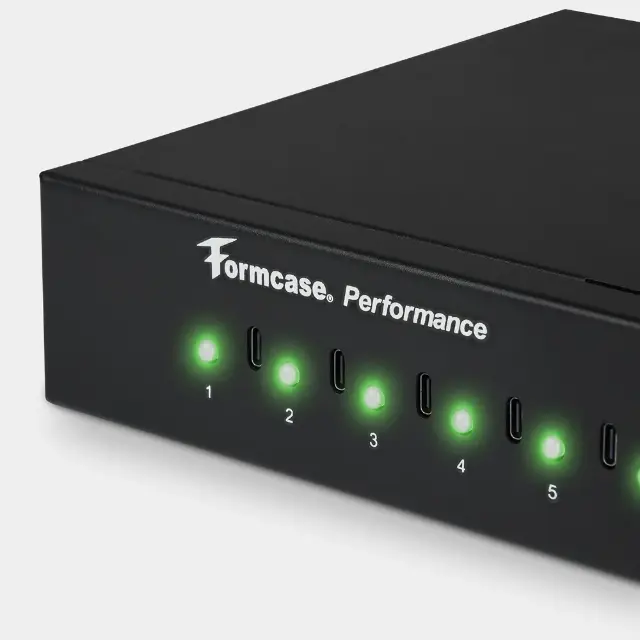

Every port shows when it’s done.
One LED per port: red while charging, green when full. See at a glance which device is ready – without checking each one.
Cool.
Even at full load.
Active ventilation carries the heat away while up to 16 devices charge at once – for stable charging power and batteries that last.
TransformerHub H16PD Performance
USB-C PD hub for 16 devices at up to 30 W per port.
- Up to 30 W per port
- Supports all USB PD voltages
- LED status: red charging, green full
- Automatic charge control
No checkout: you get a tailored quote, usually within one working day. Questions? +971 800 06512070 · [email protected]
General data
| Dimensions (L × W × H) | 440 × 200 × 51 mm |
|---|---|
| Weight | 3.2 kg |
| Material | Sheet steel + FR-ABS |
| Country of manufacture | China |
Safety & cooling
| Cooling | Active ventilation (1 fan); max. 31 dB(A), airflow 39 m³/h |
|---|
Charging functions
| LED charging indicator | Yes – red: charging, green: fully charged |
|---|---|
| Charging power | Intelligent 16-port USB-C 3.0 charging hub with automatic charge cut-off and load balancing |
| Electrical output | Up to 20 W per USB port (5 V/4 A, 9 V/2.1 A, 12 V/1.7 A) – total output 320 W – 100–240 V – 50/60 Hz – integrated on/off switch |
| Power Delivery (PD) | Yes |
Data & synchronisation
| Synchronisation | No |
|---|
Compatibility & features
| Device compatibility | Apple iPads + Android tablets + Windows devices + macOS devices |
|---|---|
| External connections | IEC power inlet |
| Labelling | Yes |
| Cable management | Yes |
Scope of delivery & certifications
| Scope of delivery | 1 × power cable 2 m (country-specific), 1 × user manual |
|---|---|
| Applied standards | DIN EN 55022 / DIN EN 61140 / DIN EN 55024 / DIN EN 50581 / DIN EN 62368-1 |
| Certificates | CE / RoHS / REACH |
| HS code | 85044083 |
| Warranty | 1-year manufacturer's warranty (extension optional) |
